Equipment

:

 Four Head Ampoule Filling Sealing Machine

Model

:

AFS-100

Optimum output

60 to100 Ampoule/min.

Overall dimensions

:

1200  mm L * 1070  mm W * 1220mm H

Electric Power Supply

:

230V. 1 Phase,1H.P

Ampoule Size

:

Min. 9.5mm Dia  to  Maxi. 18mm Dia (1ml to 10ml)

Construction details

:

The equipment consist of Hopper with loading Tray at infeed, Filling & Sealing station

Loading tray  : SS 304
Frame            : SS 304
Body Plates   : Cladded with SS 304 sheet
All Contact Parts :  S.S 316

Change Parts

:

Star Wheel & Needle

Ampoule  Collection

:

Collect in Trays

New Feature

A.C Drive
Digital Counter
New Clutch design with clutch wire system
Pre Heating system
Pre & post nitrogen gassing system
Mechanical Clutch Device for No Ampoule No Fill System
Pre Heating & Sealing Station

Weight

Net Weight: 400 kg Approx.

Equipment

:

Two Head Ampoule Filling Sealing Machine

Model

:

AFS-50

Optimum output

20 to 45 Ampoule/min.

Overall dimensions

:

1000  mm L * 1070  mm W * 1020mm H

Electric Power Supply

:

230V. 1 Phase,1H.P

Ampoule Size

:

Min. 9.5mm Dia  to  Maxi. 22 mm Dia (1ml to 25mlAmpoule)

Construction details

:

The equipment consist of Hopper with loading Tray at infeed, Filling & Sealing station

Loading tray  : SS 304
Frame            : SS 304
Body Plates   : Cladded with SS 304 sheet
All Contact Parts :  S.S 316

Change Parts

:

Star Wheel & Needle

Ampoule  Collection

:

Vertically Collect in Collection Trays

New Feature

A.C Drive
Digital Counter
New Clutch design with clutch wire system
Pre Heating system
Pre & post nitrogen gassing system
Mechanical Clutch Device for No Ampoule No Fill System
Pre Heating & Sealing Station

Weight

Net Weight: 250 kg Approx.

Equipment

:

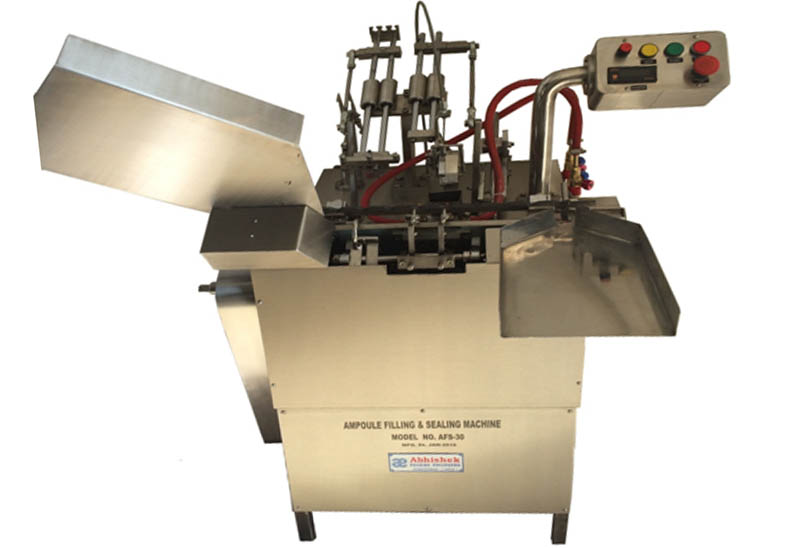

Single Head Ampoule Filling Sealing Machine

Model

:

AFS-30

Optimum output

10 to 30 Ampoule/min.

Overall dimensions

:

765  mm L * 890  mm W * 1020mm H

Electric Power Supply

:

230V. 1 Phase,0.5 H.P

Ampoule Size

:

Min. 9.5mm Dia  to  Maxi. 22 mm Dia (1ml to 25ml Ampoule)

Construction details

:

The equipment consist of Hopper with loading Tray at infeed, Filling & Sealing station

Loading tray  : SS 304
Frame            : SS 304
Body Plates   : Cladded with SS 304 sheet
All Contact Parts :  S.S 316

Change Parts

:

Star Wheel & Needle

Ampoule  Collection

:

Vertically Collect in Collection Trays

New Feature

A.C Drive
Digital Counter
New Clutch design with clutch wire system
Pre Heating system
Pre & post nitrogen gassing system
Mechanical Clutch Device for No Ampoule No Fill System
Pre Heating & Sealing Station

Weight

Net Weight: 200 kg Approx.

Equipment

:

Two  Head Servo Based Ampoule Filling Sealing Machine

Model

:

ASFS-50

Optimum output

20 to50 Ampoule/min.

Overall dimensions

:

765  mm L * 890  mm W * 1020mm H

Electric Power Supply

:

230V. 1 Phase,0.5 H.P

Ampoule Size

:

Min. 9.5mm Dia  to  Maxi. 22 mm Dia (1ml to 25ml Ampoule)

Construction details

:

The equipment consist of Hopper with loading Tray at infeed, Filling & Sealing station

       Loading tray  : SS 304
Frame            : SS 304
Body Plates   : Cladded with SS 304 sheet
All Contact Parts :  S.S 316

Change Parts

:

Star Wheel & Needle

Ampoule  Collection

:

Vertically Collect in Collection Trays

New Feature

A.C Drive
Digital Counter
New Clutch design with clutch wire system
Pre Heating system
Pre & post nitrogen gassing system
Electronic Sensor for No Ampoule No Fill System
Pre Heating & Sealing Station
Rotary Valve less Syringe
Touch Screen HMI
Easy Fill Volume Setting through HMI

Weight

Net Weight: 200 kg Approx.

Equipment

:

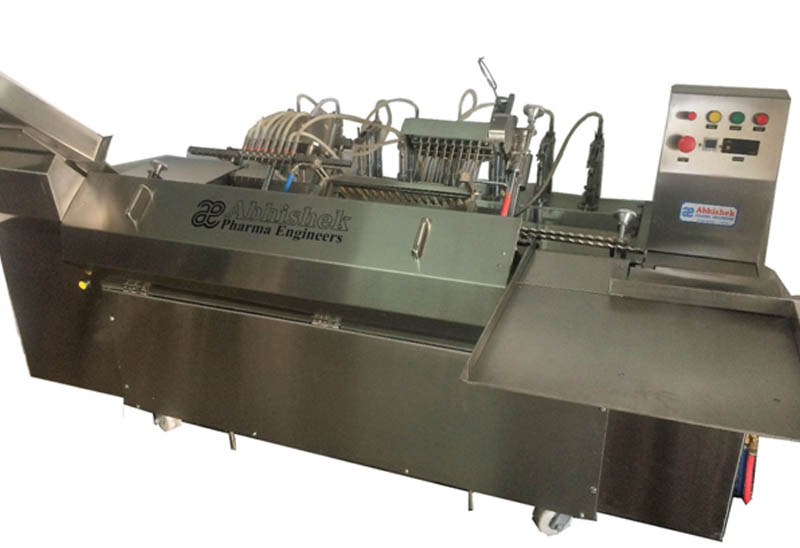

Eight Head Ampoule Filling Sealing Machine

Model

:

AFS-200

Optimum output

100 to 200 Ampoule/min.

Overall dimensions

:

1900  mm L *1400  mm W * 1400mm H

Electric Power Supply

:

230V. 1 Phase, 2  H.P

Ampoule Size

:

Min. 9.5mm Dia  to  Maxi. 17 mm Dia (1ml to 10ml Ampoule)

Construction details

:

The equipment consist of Hopper with loading Tray at infeed, Filling & Sealing station

       Loading tray  : SS 304
Frame            : SS 304
Body Plates   : Cladded with SS 304 sheet
All Contact Parts :  S.S 316

Change Parts

:

Feeding Block, Rack& Needle

Ampoule  Collection

:

Vertically Collect in Collection Trays

New Feature

A.C Drive
Digital Counter
New Clutch design with clutch wire system
Pre Heating system
Pre & post nitrogen gassing system
Mechanical Clutch Device for No Ampoule No Fill System
Pre Heating & Sealing Station
Blower Attachment provided at sealing station
Easy Change over

Weight

Net Weight: 1000 kg Approx.

Equipment

:

Six Head Ampoule Filling Sealing Machine

Model

:

AFS-150

Optimum output

80 to140 Ampoule/min.

Overall dimensions

:

1600  mm L *1400  mm W * 1400mm H

Electric Power Supply

:

230V. 1 Phase, 2  H.P

Ampoule Size

:

Min. 9.5mm Dia  to  Maxi. 17 mm Dia (1ml to 10ml Ampoule)

Construction details

:

The equipment consist of Hopper with loading Tray at infeed, Filling & Sealing station

Loading tray  : SS 304
Frame            : SS 304
Body Plates   : Cladded with SS 304 sheet
All Contact Parts :  S.S 316

Change Parts

:

Feeding Block, Rack& Needle

Ampoule  Collection

:

Vertically Collect in Collection Trays

New Feature

A.C Drive
Digital Counter
New Clutch design with clutch wire system
Pre Heating system
Pre & post nitrogen gassing system
Mechanical Clutch Device for No Ampoule No Fill System
Pre Heating & Sealing Station
Blower Attachment provided at sealing station
Easy Change over

Weight

Net Weight: 850 kg Approx.
