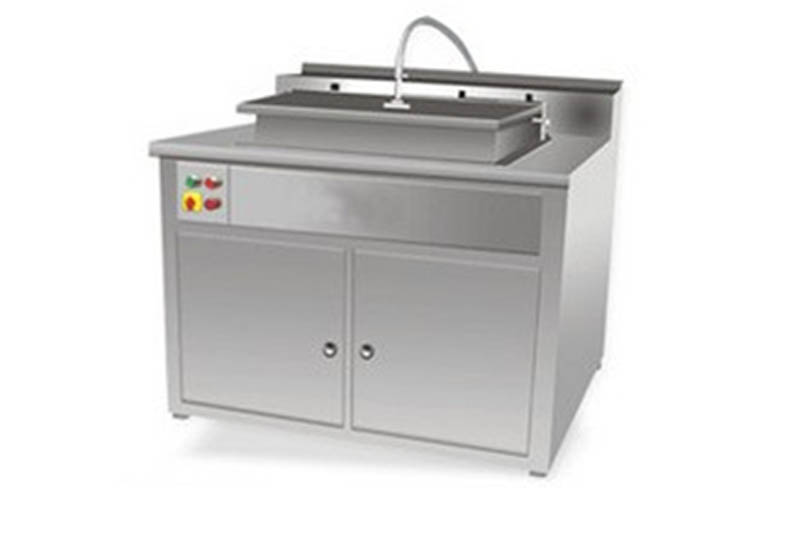

Multijet Ampoule/Vial Washing Machine

OUT PUT/ CYCLE :- Each Cycle time will be of approximately 60 seconds . Depending on the operator’s efficiency & method of Ampoule & Vial loading, 30 cycle/hour can be achieved. Further, Ampoule/Vial size and corresponding Multi Jet Needle Plate will decide the total output.

Multi Jet Needles

Max. Ampoule Size(ml) up to

Max. Vial Size(ml) up to

340

1 to 5ml

002

240

1 to 5ml

003

189

1 to 25ml

5/10

149

1 to 25ml

5/10/20

100

1 to 25ml

5/10/20/30

056

1 to 25ml

100

POWER CHARECTERISTICS : 415 VOLTS, 3 PHASE ( 4 Wire System 50 Cycles/Sec.)
POWE CONSUMPTION : 0.25 HP
Typical washing Sequences & Consumption per Cycle (Buyer to provide)


Internal / External Washing   Consumption of utilities
1st Wash D.M Water 3.5 to 4 Liters
2nd Wash Air
3rd Wash D.M Water 3.5 to 4 Liters
4th Wash Air
5th Wash WFI
6th Wash Air 3.5 to 4 Liters
20 CFM Air, Filtered to 5 Micron at 5 Bar pressure for Air Washing & Pressuring Tank and DM Distilled Water at about 2 kg/cm2G to be provided by the Buyer.
Floor Space : 950mm(L) X 815mm (W) X 900mm (H)
Case Dimension : 1100mm (L) X 1050mm (W) X 1200mm (H)
Net Weight : 120 Kg
Gross Weight : 250 Kg
