Equipment |
: |

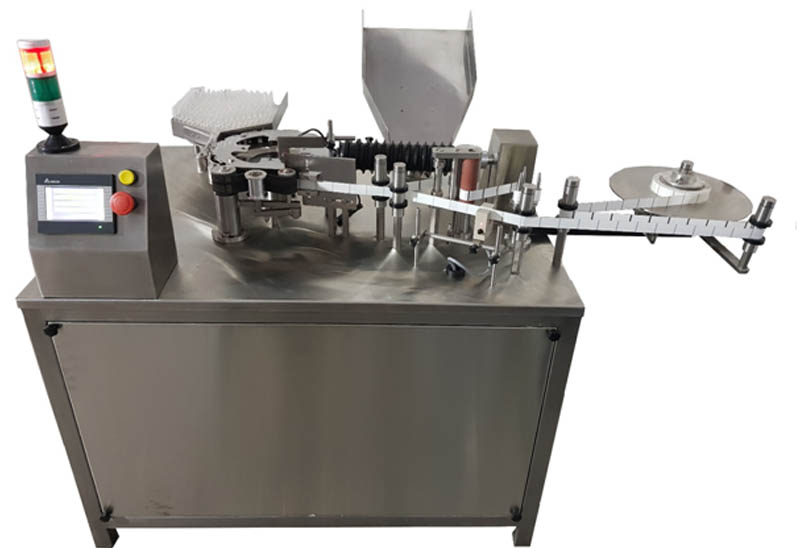

Ampoule sticker Labeling Machine |
Model |
: |
ASL-120 |
Optimum output |
|
120 Ampoule/min. |
Overall dimensions |
: |
900 mm L * 800 mm W * 1100mm H |
Electric Power Supply |
: |
230V. 50Hz, 1 Phase,0.5 H.P Gear Motor 3 Wire system with separate earthing |
Construction details |
: |
The equipment consist of hopper with loading Tray at infeed |
|
|
Loading tray : SS 304 |
Change Parts |
: |
Star Wheel & Feed Worm |
Ampoule Collection |
: |
Collect in Trays |
Sensor |
: |
Sick/Panasonic make |
Servo Motor |
: |
Panasonic Make |
PLC |
: |
Delta Make |
No Ampoule No Label |
: |
Yes |
Counter |
: |
Yes |
Equipment |
: |
Ampoule sticker Labeling Machine |
Model |
: |
ASL-300 |
Optimum output |
|
300 Ampoule/min. |
Overall dimensions |
: |
1100 mm L * 1000 mm W * 1200mm H |
Electric Power Supply |
: |
230V. 50Hz, 1 Phase,0.5 H.P Gear Motor 3 Wire system with separate earthing |
Construction details |
: |
The equipment consist of hopper with loading Tray at infeed |
|
|
Loading tray : SS 304 |
Change Parts |
: |
Star Wheel & Feed Worm |
Ampoule Collection |
: |
Collect in Trays |
Sensor |
: |
Sick/Panasonic make |
Servo Motor |
: |
Panasonic Make |
PLC |
: |
Delta Make |
No Ampoule No Label |
: |
Yes |
Counter |
: |
Yes |
